The products are widely used in three-dimensional parking garages, lifting machinery, metallurgy, mining, petrochemicals, various automated production lines, transportation, emerging domestic logistics equipment, environmental protection, and other industries. They provide advanced and economical choices for your drive applications, making your production smoother and your performance more outstanding. The products adopt a series of modular design concepts, giving them broad adaptability. Single products can independently realize their functions or be combined with this series or other models to form gear reduction units that meet different needs.
The torque and design are suitable for applications with limited installation space.
Advantages and characteristics
-
The radial load is large
Large radial loading ability. -
High Efficiency
The efficiency of gear unit can reach 95%, The efficiency of worm gear unit can reach 89%. -
Ratio
Featured many closely divided ratios and a wider range of them. Very big final ratios can be obtained through combined units to reach extremely low output speeds.
Characteristic
Highly Standard Modular Designed:The products are easily connected with and driven by different types of motors or other kinds of input power. The same type of geared motor can be adapted to the optioned powers of motors. it is therefore easy to realize different solutions for varied requirements.
Ratio: Featured many closely divided ratios and a wider range of them. Very big final ratios can be obtained through combined units to reach extremely low output speeds.
Mounting Arrangement: No strict limitations to the mounting arrangement.
High Strength, Compact Dimension: Housings are made of high-strength cast iron. Gears and shaft gears are finished with gas carburising process and precise grounding to sequentially get high loading capacity of per certain volume.
Long Service Life: Under the condition of accurately selecting type size and the normal maintenance and use, main components (except those easily disabled parts )can last as long as up to more than 25,000 hours. Easi-ly-disabled parts include lubricating oil, oil seals, and bearings.
Low Noise:All key components are finished by precise machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.
High Efficiency:The efficiency of gear unit can reach 95%, The efficiency of worm gear unit can reach 89%.
Large radial loading ability.
- Axial load ability of up to 5% of radial load.

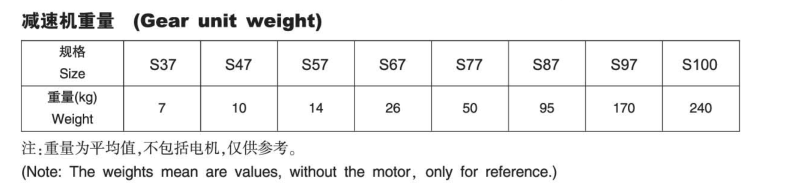

Technical data
Application scope
The products are widely used in metallurgy, mining, petrochemical, tobacco, ceramics, rubber and plastics, grain and oil food, beer and beverage, transportation, emerging domestic logistics equipment, three-dimensional parking garages, and environmental protection industries.
This gear motor is suitable for operation in ambient temperatures ranging from -10℃ to +40℃ and can be used at altitudes up to 1000 meters.
It can be used for both forward and reverse rotation.
It cannot be used in environments with explosive gases.
- For use under other conditions, please contact our technical.
