Super large torque, super large airflow, and exceptional cost-effectiveness.
Advantages and characteristics
-
Low temperature rise, suitable for high-temperature environments.
Due to the unique design of our permanent magnet motor, the temperature rise during operation is low. Even in extremely hot environments, the motor maintains excellent performance and functionality. Additionally, it will not experience a decrease in torque due to overheating, and cooling efficiency remains high. Our permanent magnet industrial fan ensures long-term stable operation in high-temperature environments without a drop in efficiency! -
High speed, large torque, and low energy consumption.
The rotor and stator are arranged in a vertical structure. Compared to traditional internal and external permanent magnet motors, our company's permanent magnet motor features a larger magnetic field contact area and a stronger magnetic field. This results in greater torque, lower energy consumption, and higher efficiency under the same working conditions, showcasing outstanding performance in environmental protection and energy saving. -
Energy-saving and highly efficient.
Our industrial fan has a diameter of 7.3 meters and consumes approximately 1 kW of energy at a speed of 65 RPM, achieving at least 50% energy savings compared to similar products.
Characteristic
Drive Unit
a) Motor: Equipped with the German brand LENZE three-phase asynchronous motor 3-MOT EN60034, featuring mature technology, advanced craftsmanship, and stable performance. The starting current is constant, which prevents any impact on the power grid.
b) Protection Level: IP55.
Fan Blades
a) High-Strength Blades: Made from imported high-strength aerospace magnesium-aluminum alloy with surface oxidation treatment. Developed using advanced fluid simulation testing software and wind direction experiments, these blades are designed to maximize airflow with minimal stress. They feature three built-in reinforcement ribs that enhance hardness and lifespan without compromising blade flexibility.
b) Tensile Strength: ≥300MPa.
c) ABS Turbulence Wingtips: The fan blade tips are designed with upturned ABS turbulence wingtips to effectively eliminate vortices generated during air movement. This design ensures a conical airflow pattern that spreads air in all directions, providing comprehensive ventilation. Additionally, the ABS turbulence wingtips offset upward stress during operation, further extending the blade's lifespan.
Chassis
a) High-Precision Chassis: Manufactured using 1500T hot forging, CNC lathe processing, and precision CNC machining. The hot forging process ensures the continuity of metal fibers, preventing tear damage and aligning the fibers with the shape of the forging to maximize mechanical performance. After CNC processing, the chassis precision is controlled within 100μm, ensuring precise dynamic balance.
b) Tensile Strength: ≥350MPa.
c) Blade Connection: Uses an external clamp method to connect the fan blades, making the structure simple and easy to maintain, with stable performance.
Control Box
a) Control System: Linte's independently developed stepless speed control system, featuring a reputable imported Taiwan Shilin adjustable frequency converter. It uses frequency conversion technology and microelectronic technology to change the motor power supply frequency, achieving energy saving and speed control.
b) Safety Protection: Built-in safety protection module provides automatic protection functions such as overcurrent, overvoltage, overheating, and overload, ensuring the motor's longevity.
c) Power Configuration: AC380V 50HZ, with power cable ≥1.5 square millimeters.
d) Stepless Speed Control: Stepless speed control knob.
e) Control Box: Linte's proprietary design, featuring an aesthetically pleasing metal shell that is impact-resistant and interference-resistant, with protection level IP55.
Safety Protection Devices
a) Product Safety Structure Description: Provides detailed product safety structure explanations.
b) Safety Ropes: Four safety ropes for anti-fall protection.
c) Turntable Anti-Fall Protection: Mechanism to prevent the turntable from falling.
d) Fan Blade Anti-Drop Protection: Mechanism to prevent fan blades from detaching.
Others
a) Certifications: The product is ISO9001 quality system certified.
b) EU CE Certification: The product has passed EU CE certification.
c) Insurance: The product is underwritten by PICC, People's Insurance Company of China.

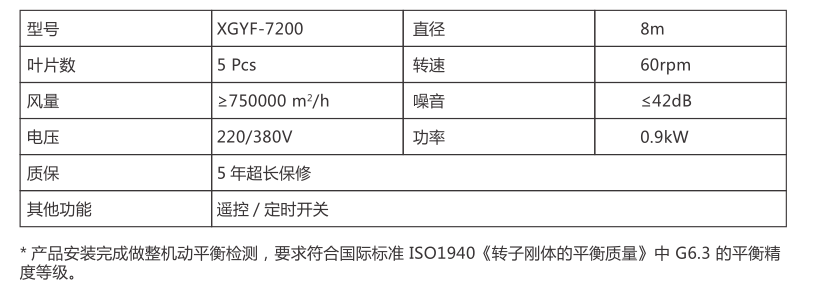

Technical data

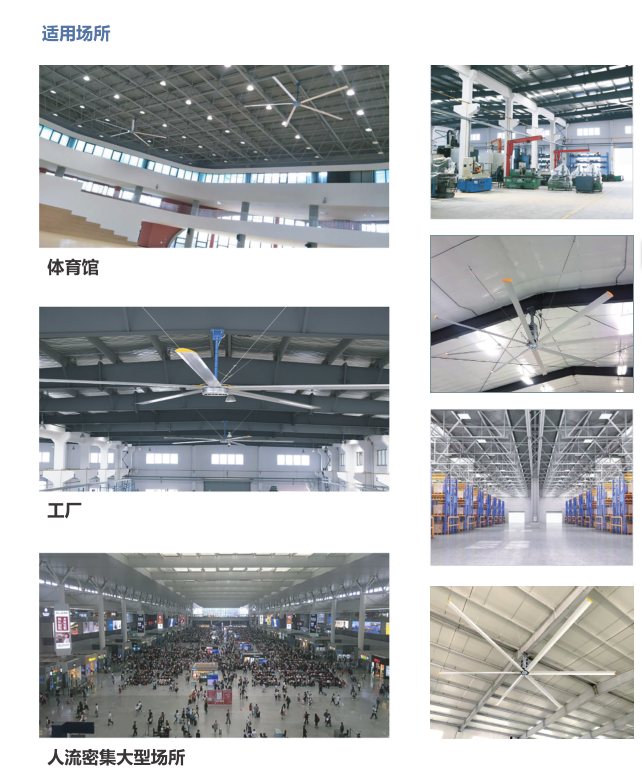

Application scope
